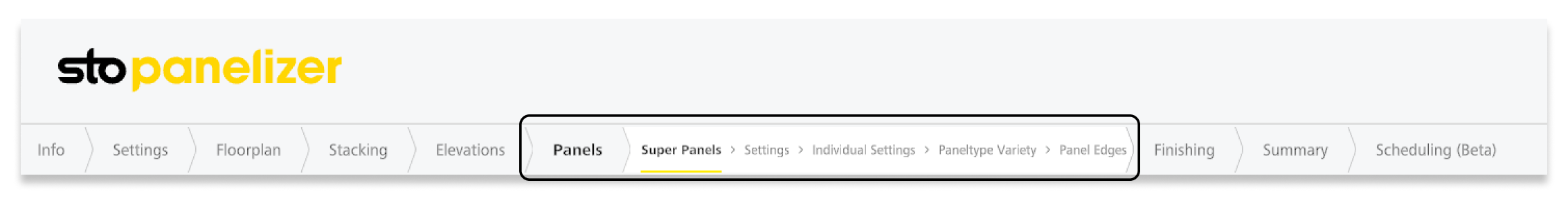

Step 7.1: Panels > Super Panels

Purpose – the Panelizer divides the building into Super Panels, large planar areas/sections made up of individual panels.

• The Super Panels will follow global settings (Panels > Settings) or can have individual settings (Panels > Individual Settings).
• Each Super Panel is displayed as a blue box with an “X” in it.
• There is always a panel break between Super Panels.

Custom Super Panels - you can overwrite the current Super Panels to define your own area(s) with a custom set of penalization rules.

• Projection Custom SuperPanels - allows you to draw a custom Super Panel. Like projecting an elevation, define the left, right, bottom and top edges in that order.
  • Note: Click on the "Force Update" button to see the changes made to the Super Panels (shown in red).
