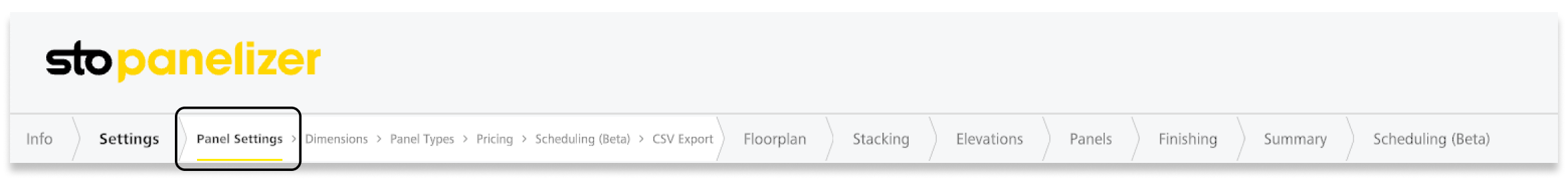

Step 3.1: Settings > Panel Settings

Purpose - these are global settings, and some adjustments can be made later in Stacking and Panels, using sliders.

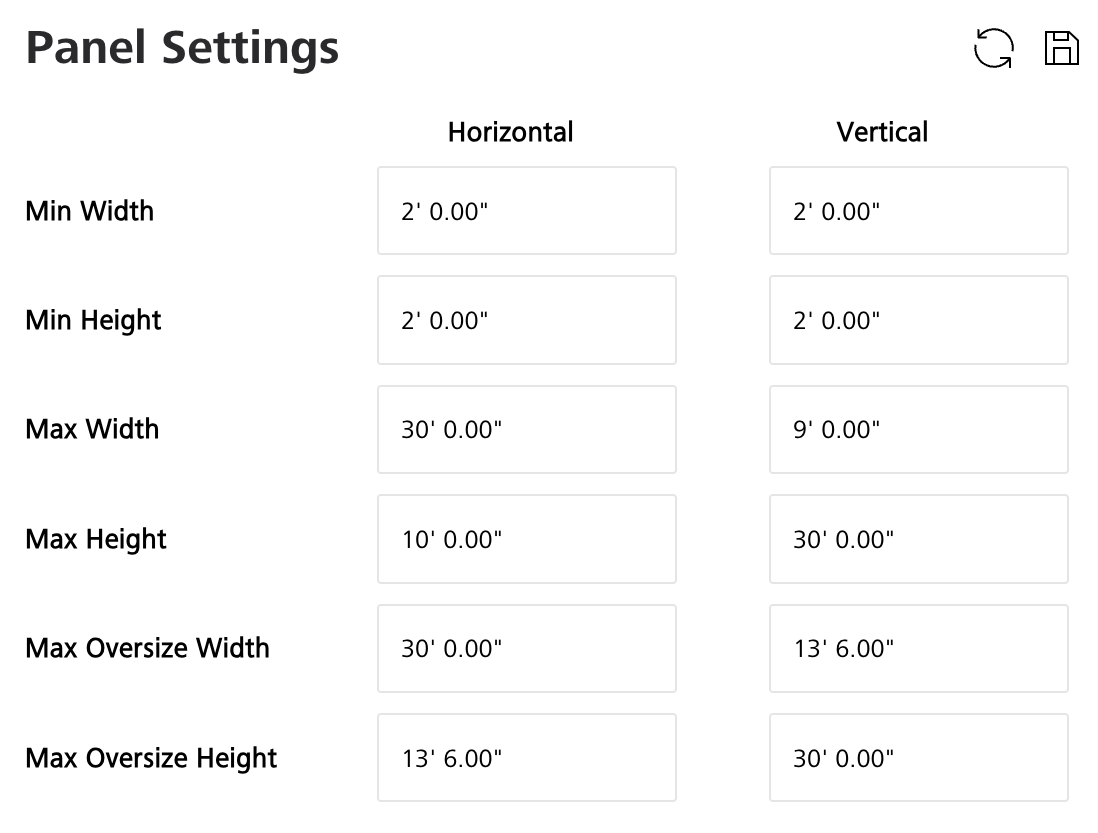

• Horizontal vs. Vertical – set the minimum and maximum for a standard panel and an oversized panel.

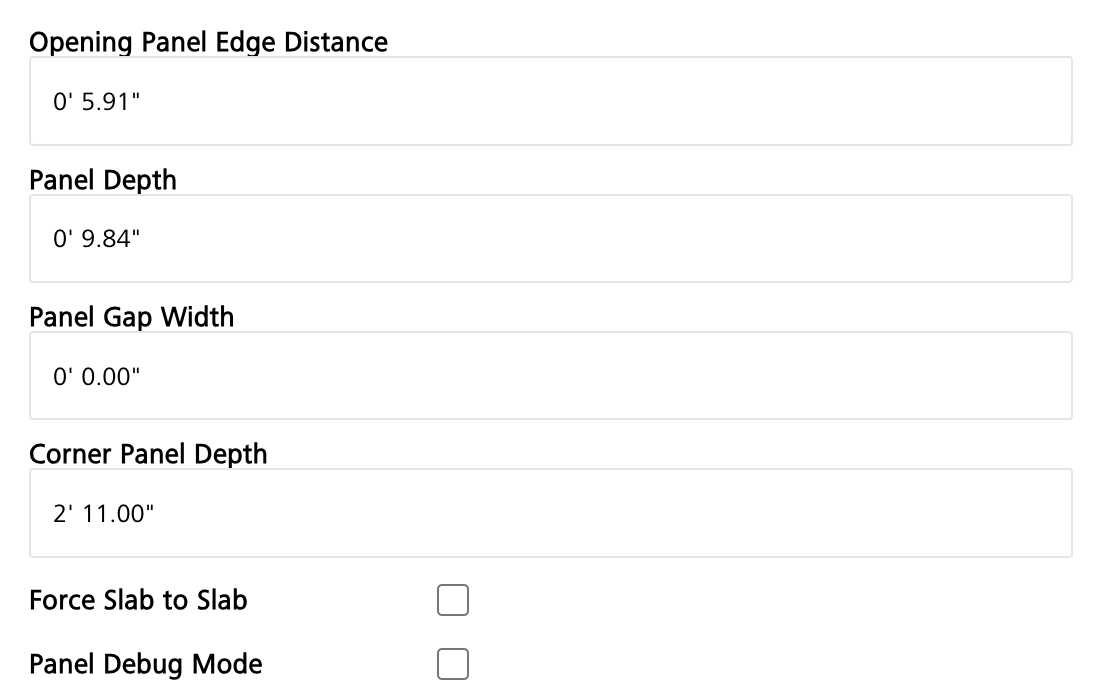

• Opening Panel Edge Distance – to set the minimum distance from a panel edge that an opening can be placed.
• Panel Depth – to set the depth or thickness of the entire panel.
• Panel Gap Width – to set the panel gap that the Panelizer will take into account when calculating.
• Corner Panel Depth – to set the length of the corner face.
• Force Slab to Slab – select this check box if you want panels to be slab to slab.
• Panel Debug Mode – select this check box to enable the debug mode.



Company Settings

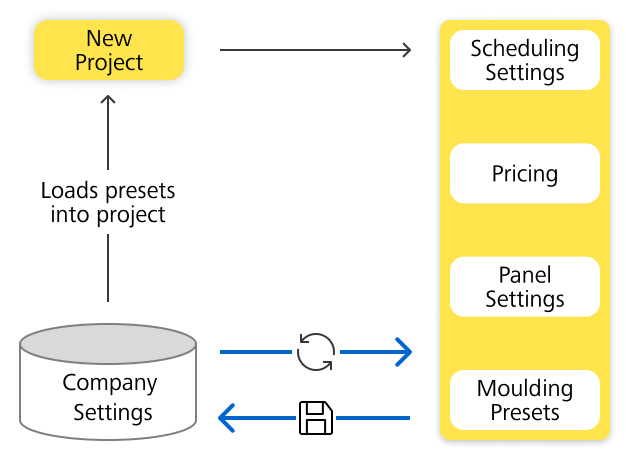

Purpose - to set default settings for your company and reset changed settings.

• Company Preset Settings are available for Scheduling, Pricing Level 1-3, Panel Settings and Moulding Presets.
• You can use the Save button to define company defaults. They will be loaded into every new project you create and act as the global default.
  • Note: These settings are available for all users within your company who have an account in StoPanelizer.

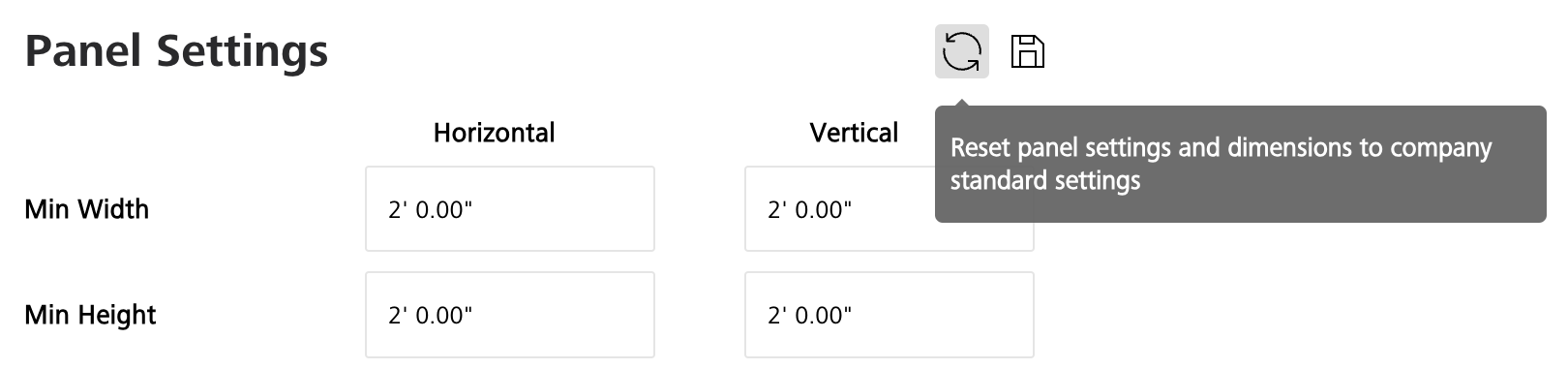

• You can always customize these settings for a project and reset them to the global default settings.
