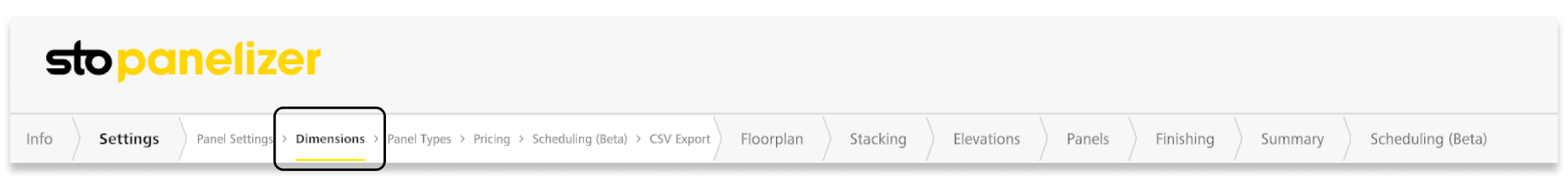

Step 3.2: Settings > Dimensions

Purpose - these are global settings and can be adjusted later in Stacking. Enter the most standard information for the building.

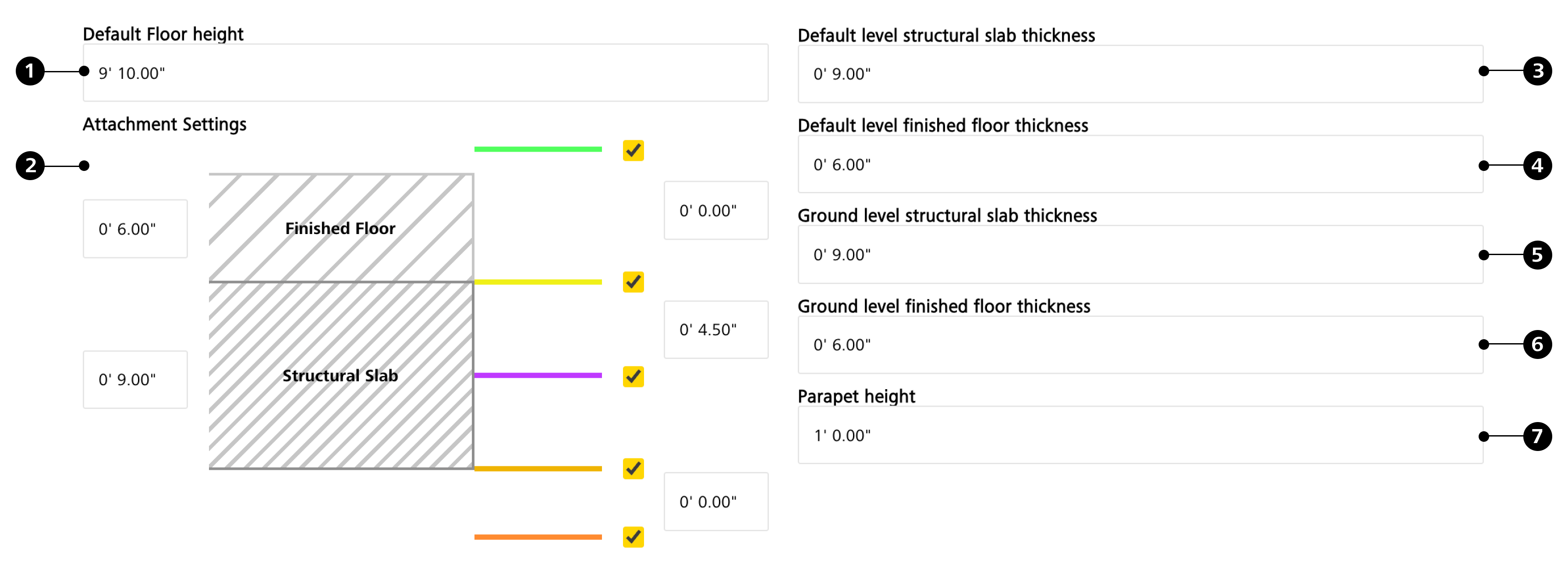

• Default floor height (1) - the most standard floor height. Can be slab to slab or floor to floor.
• Attachment Settings (2) - you can decide which attachment lines will be activated in the 3D model and also change certain distances between them.
  • Note: The position of the yellow and the orange lines can't be changed and their distance depends on the structural slab thickness.
• Default level structural slab thickness (3) - the most common SST.
• Default level finished floor thickness (4) - the most common FFT.
• Ground level structural slab thickness (5).
• Ground level finished floor thickness (6).
• Parapet height (7) - the most common parapet height.

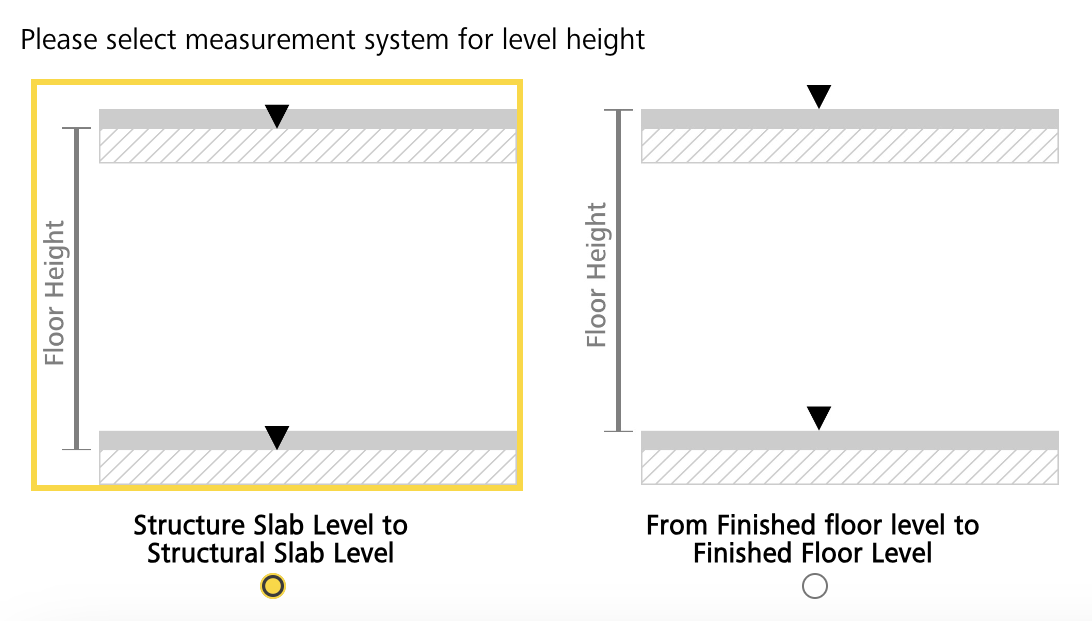

• Select the measurement system used for the level height; slab to slab or floor to floor.
  • Note: It is recommended to use the "slab to slab" measurement system (on the left side) because most of the provided building plans only show the building shell measurements.
