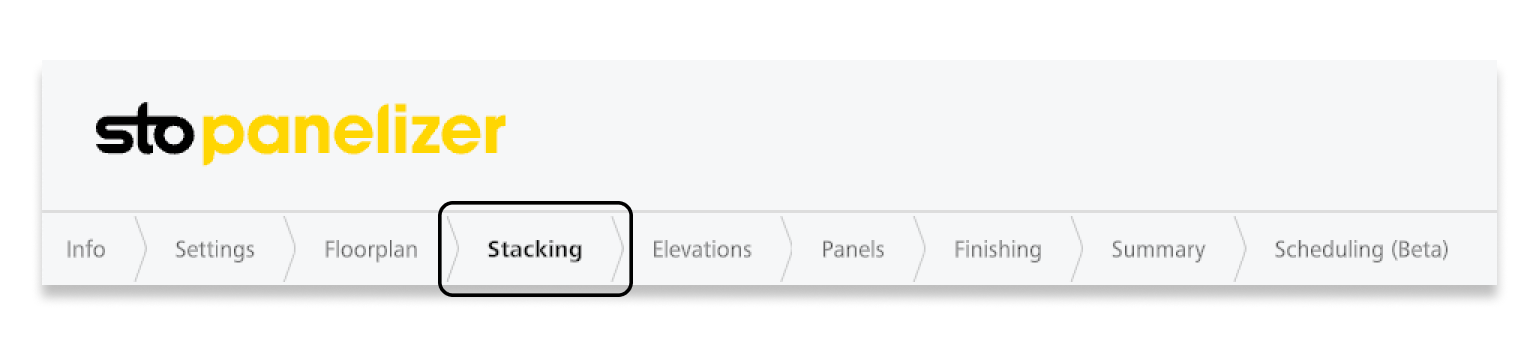

Step 5: Stacking

Purpose – to adjust individual floor heights, parapet heights, structural slab thickness (SST), and finished floor thickness (FFT) as needed. Initial global settings are made in Settings > Dimensions.

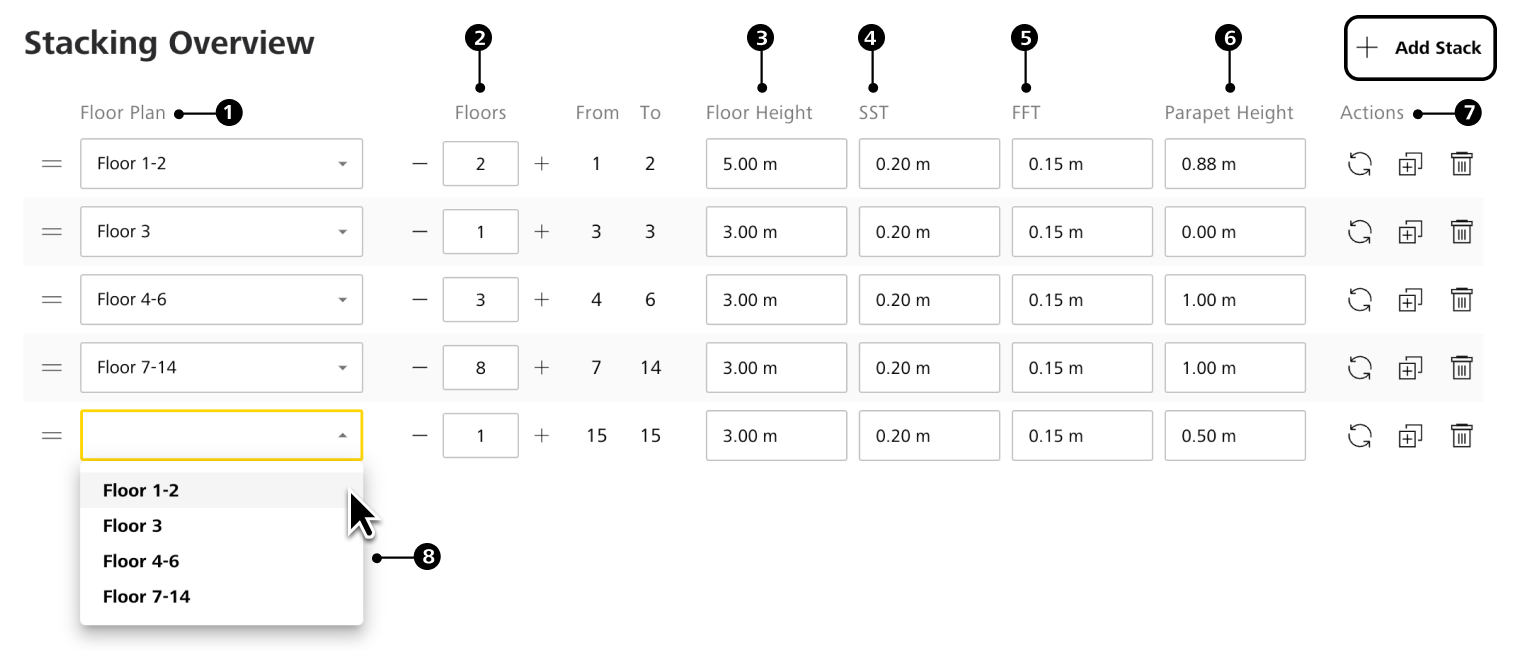

• Floor Plan (1) – automatically populated from floorplan entries.
  • Can be adjusted/reordered if necessary using the drop down menu and drag/drop.
• Floors (2) – sets the number of how often the floorplan exists.
• Floor Height (3) – adjust individual floor heights according to plans if different from the global settings.
• SST (4) - adjust individual structural slab thickness according to plans if different from the global settings.
• FFT (5) - adjust individual finished floor thickness according to plans if different from the global settings.
• Parapet Height (6) – adjust individual parapet heights from plan if different from the global settings.
• Actions (7)
  • Reset – reset the floor height, SST, FFT and parapet height to the global settings.
  • Duplicate / Delete   - to duplicate or delete the stack.
• Add Stack – adds a “blank” floor using the global settings. The user must select a floorplan from the drop down menu and adjust individual settings as needed (8).
