Lower Toolbar for Projection, Panels, and Finishing

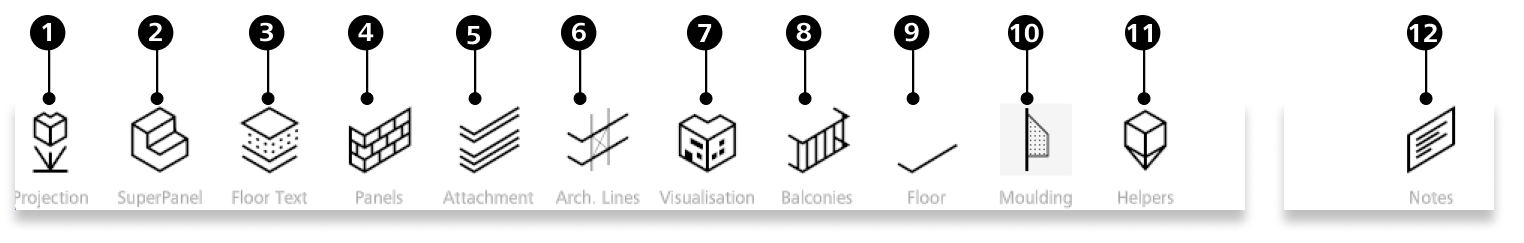

Purpose – by activating the tools of the lower toolbar you can select which elements of the 3D model should be visible.

• Projection (1) of the facade.
• SuperPanel (2) - shows the large areas of panelization as indicated by a blue “X”.
• Floor Text (3) - shows the floors & their number as built.
• Panels (4) - shows panels as indicated by a yellow “X”.
• Attachment (5) - shows attachment lines for panel attachment.
• Arch. Lines (6) - shows architectural lines for each elevation.
• Visualization (7) - toggles the facade on/off for viewing.
• Balconies (8) - toggles a visualization of the balcony railings.
• Floor (9) - will "ground" the building by showing a terrain.
• Moulding (10) - will show the mouldings on the 3D model.
• Helpers (11) - toggles help cards that show elevation names, background Panelizer information, and may show error codes or warnings. Some show floor information.
• Notes (12) - toggles background Panelizer information (i.e. SuperPanel number, Panel number, facade name, and others).
  • SuperPanels active + Notes: SuperPanel notes are displayed in yellow.
  • Panels active + Notes: Standard size panel notes are displayed in green and Oversize panels notes are displayed in yellow.
