Floors Overview

Purpose: The Floors section is where the structure and geometry of each building level in the project is define. It provides access to two key workspaces Floorplan and Stacking that together establish both the horizontal footprint and the vertical arrangement of all floors. This section ensures that every floor is accurately outlined, aligned, and prepared before moving into Elevation, Solution, and Estimation. It serves as the foundation for the entire facade workflow.

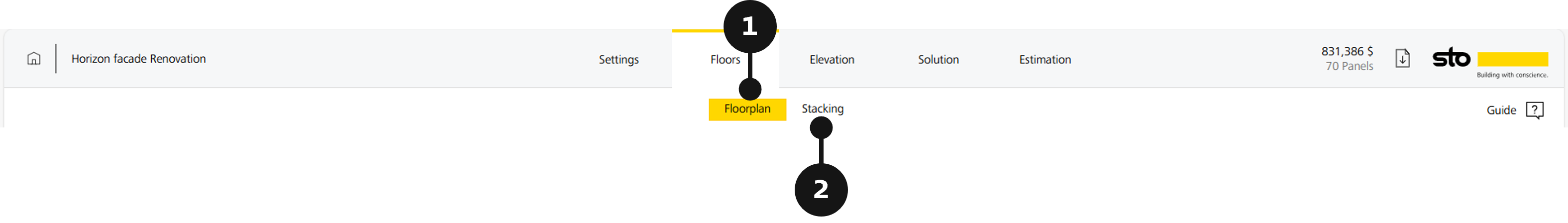

Floorplan (1): It opens the Floorplan workspace, where it is possible to draw and edit each floor’s outline, add balconies, measure distances, define the origin point, and adjust the geometry in both 2D and 3D views. This is the primary area for shaping the footprint of each floor Floors: Floorplan.



Stacking (2): It opens the Stacking workspace, where the adjustment of vertical properties such as floor height, parapet height, and stacking can be made. This tab helps ensure all floors align correctly and reflect the real building structure Floors: Stacking.
