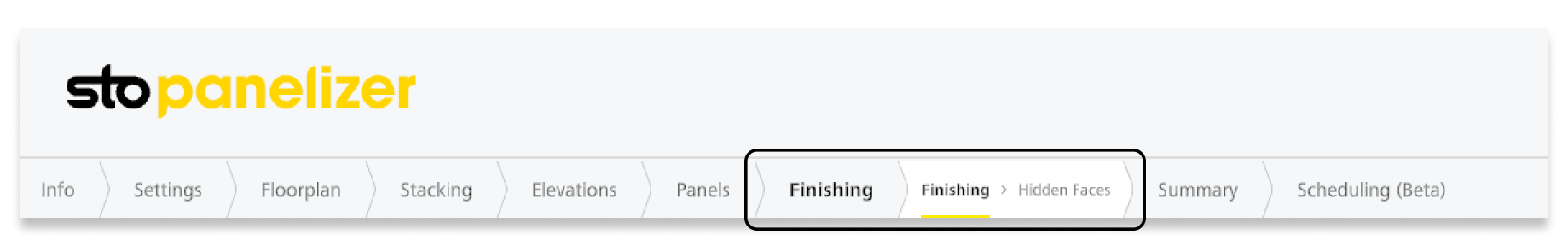

Step 8: Finishing

Finishing

Purpose - define the Finishing for each material that has been assigned in Elevation > Materials.

• First, select a material by clicking on the 3D model or selecting from the drop-down list. Then you can choose between different finishes for each material.
  • The finishes are displayed in the 3D model.
• You can also assign or remove a color to the material.
• On the right side you can check the correctness of the Look Type, Finish Type and the Panel Type of the selected material.

Hidden Faces

Purpose –  if no elevation is provided, the Panelizer will complete the building and mark these “fill in” areas as Hidden Faces.

• Select - you can select a Hidden Face by clicking on it or selecting one from the drop-down list. On the right you will see the information about the Look Type, Finish Type and Panel Type of the selected Hidden Face.
• Assign Material - lets you assign a material to the selected hidden face(s). The drop-down list displays all materials that have been created in Elevations > Materials.
• Reset Hidden Faces - resets all hidden faces so that they don't have materials assigned to them.
• Select All Hidden Faces - selects all hidden faces so that you can assign the same material to all of them.
