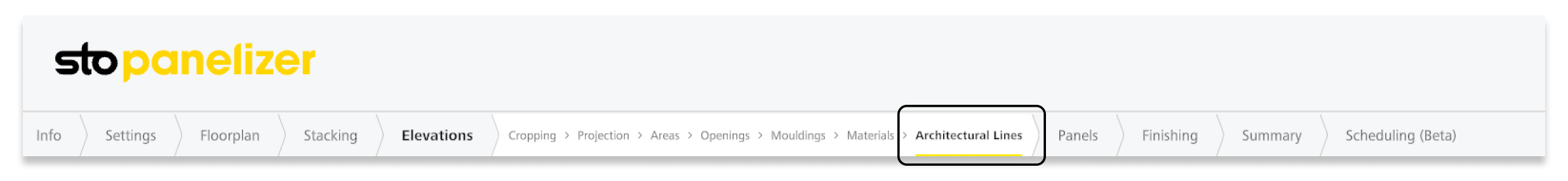

Step 6.7: Elevations > Architectural Lines

Architectural Lines

Purpose – architectural lines create a separation between the panels, a panel break. You can insert them vertically and horizontally wherever you want to create a separation between the panels.

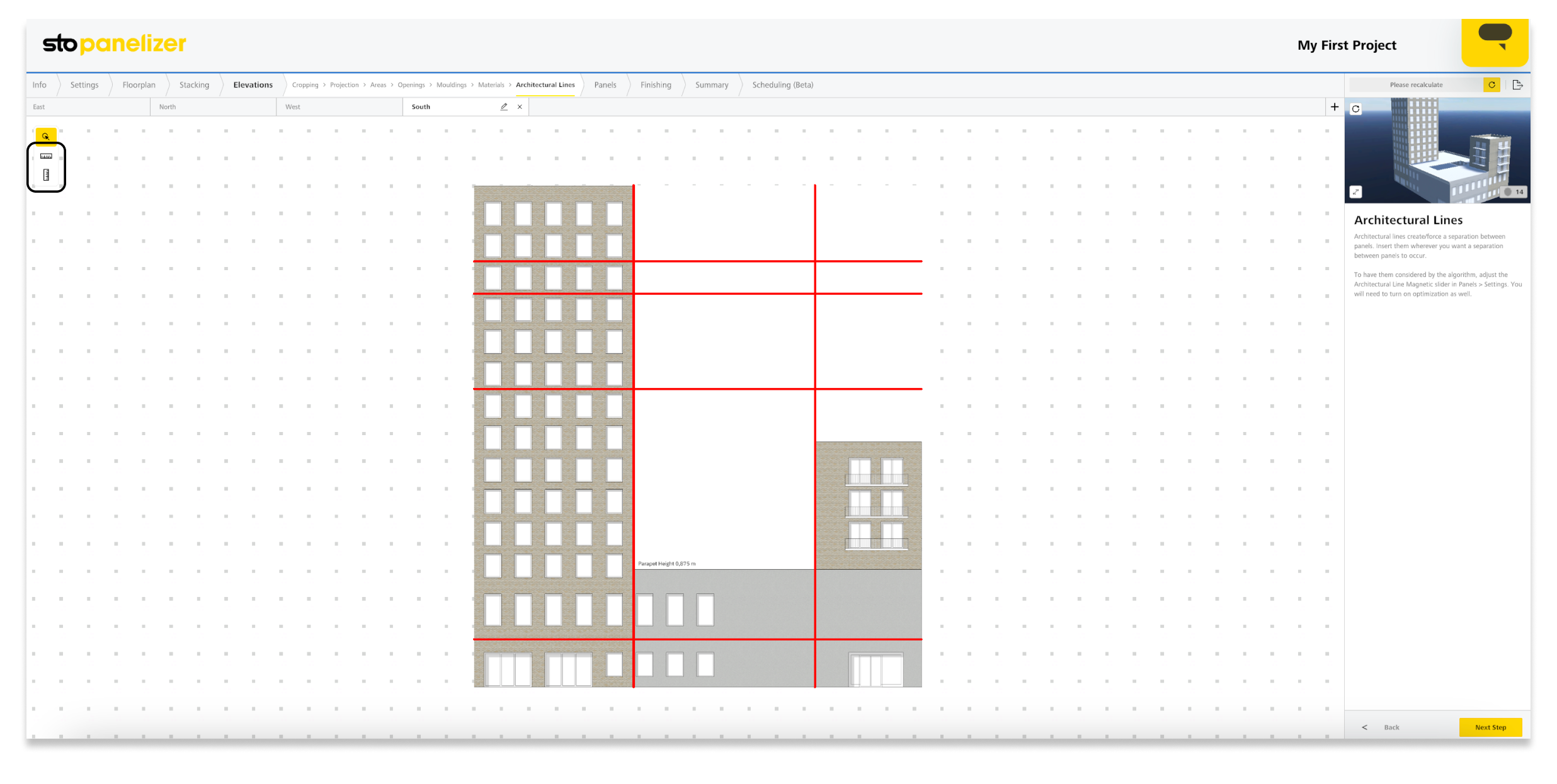

• Define material lines – set horizontal and vertical lines by clicking the appropriate button then use left-click to set lines and Esc when finished.
  • Horizontal
  • Vertical
