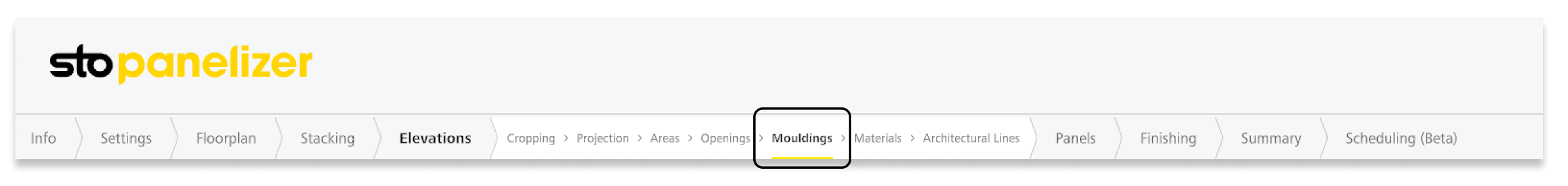

Mouldings
Purpose - creates mouldings with assigned structures, depths and prices.
- Mouldings are displayed in the 3D model and create a panel break but not a material break.
- Select - allows the user to select, move, edit and delete moldings.

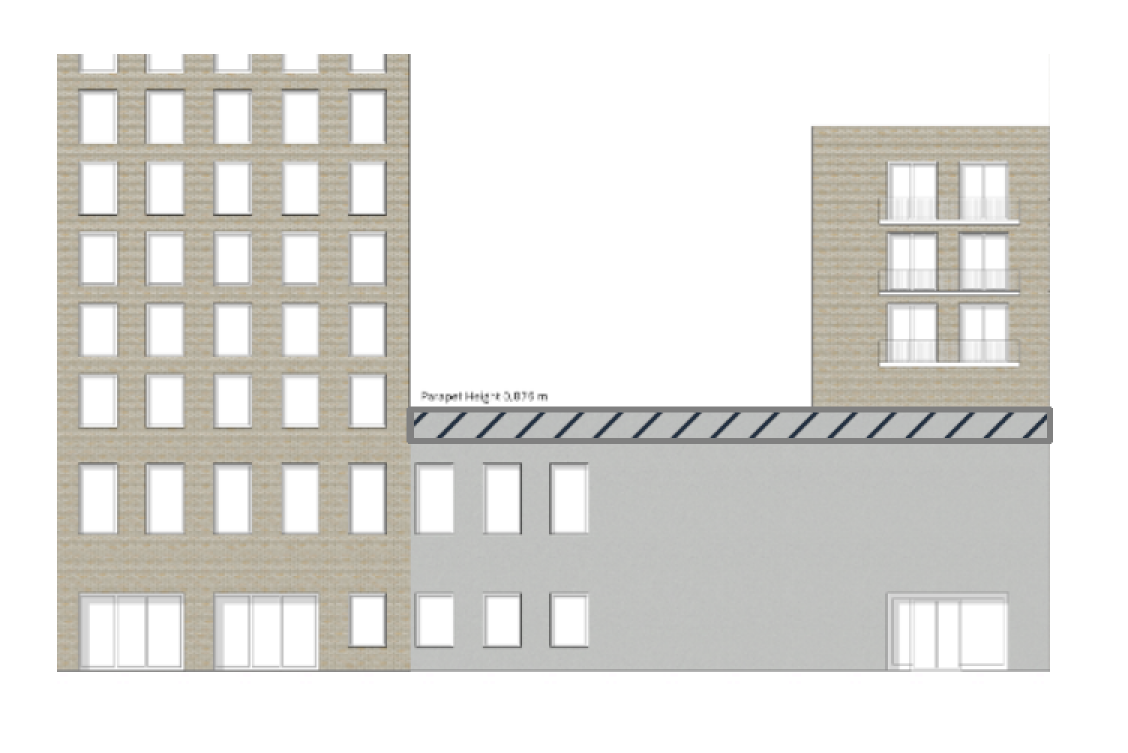

- Moulding tool - allows the user to add mouldings by drawing a rectangle. When first placed, the moulding will appear as a gray hatched box to which a moulding type can be assigned.
- Create a Moulding type
- Use the Edit tool to edit the name, cost, depth, shape and color of the moulding.
- Note: Click on the Preset button to load moulding presets.
- Use the Delete button to delete the moulding type.

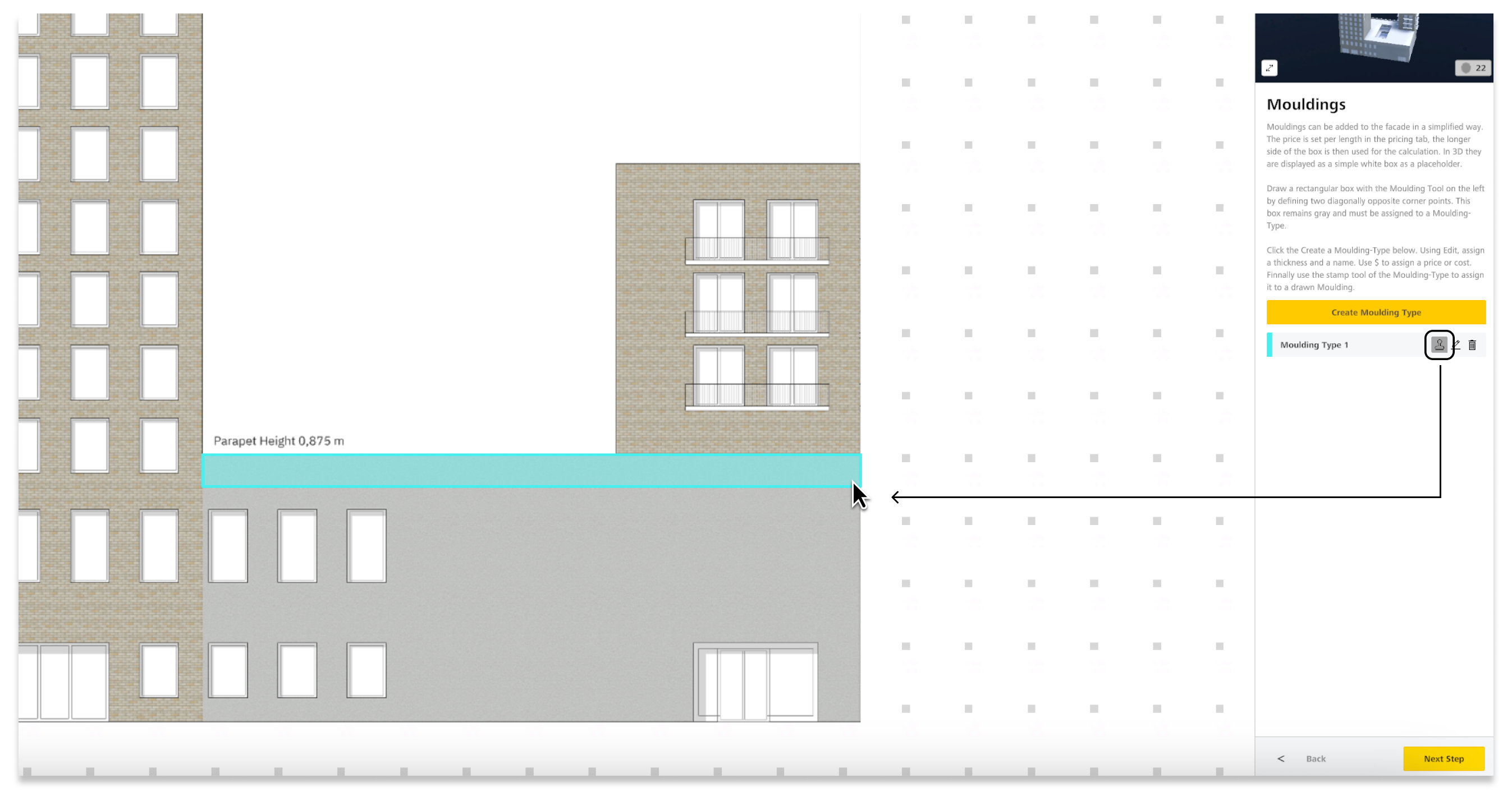

- Use the stamp to assign the moulding type to a drawn moulding.
- Use the Edit tool to edit the name, cost, depth, shape and color of the moulding.
